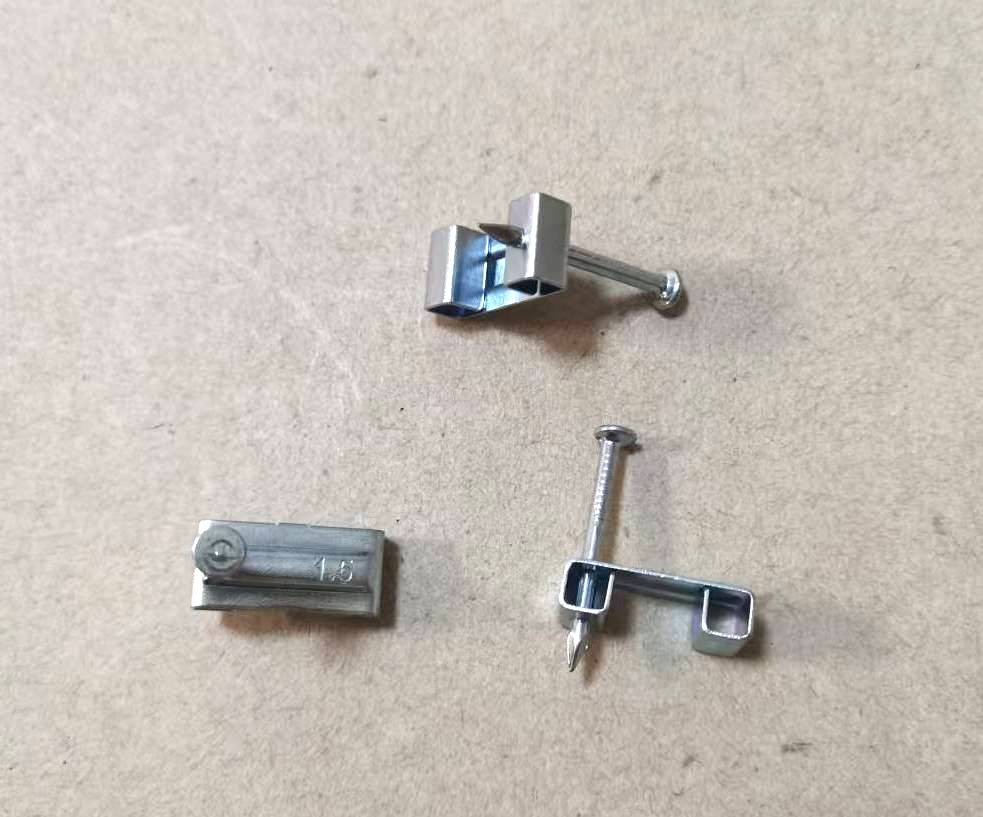

Twin & Earth Cable Grip Clip 1.5mm²

Twin & Earth Cable Grip Clip 1.5mm²

Material： Carbon Steel
Finish：zinc-plated
sizes: T&E cable 1.5mm², 2.5mm², 4.0mm², 6.0mm²
T&E Grip Clips, Metal Cable Clip, Cable Clips, Steel Cable Clips, metal Cable Clips, Fire Resistant Nail Clips, High Temp Resistant Support Clip
  • Flat-head nail sits tight when knocked-in to mortar and wood with minimal risk of a nail bending or buckling in hard substrates.
  • User-friendly design for easy positioning - keeping finger & thumb away from hammer
  • Raised strip on clip-head prevents cable bruising if mis-hit

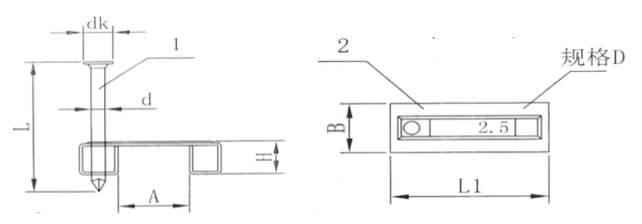

T & E Cable Clip Length (mm) Clip Width (mm) Clip Height (mm) Nail Head(mm) Nail (mm) Qty/Bag
Size D  A L1 min L1 max B min B max H min H max dk min dk max d min d max L min L max (pcs)
1.5mm² 8.5 17.5 19.5 7.8 9.4 4.8 5.8 3.8 4.5 1.8 2.2 24 26 100
2.5mm² 10 20.6 22.6 7.8 9.4 6 7 3.8 4.5 1.8 2.2 24 26 100
4mm² 12 23 25 7.8 9.4 6.4 7.4 3.8 4.5 1.8 2.2 24 26 100
6mm² 14 26 28 7.8 9.4 6.8 7.8 3.8 4.5 1.8 2.2 24 26 100
